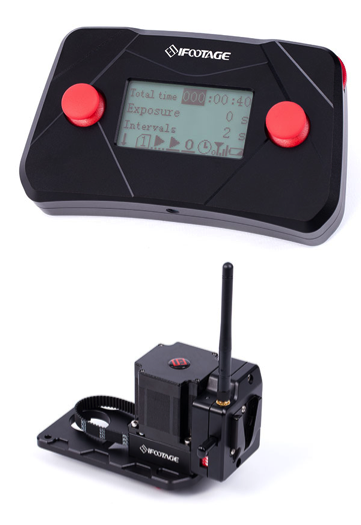

Single Axis Motion Control

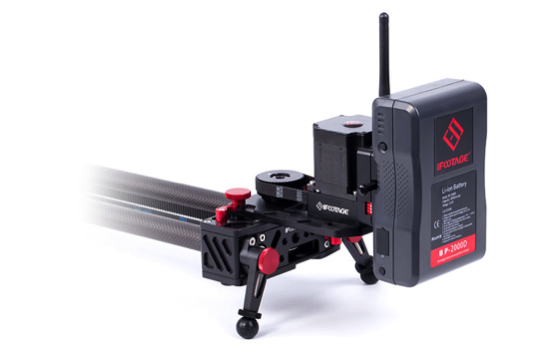

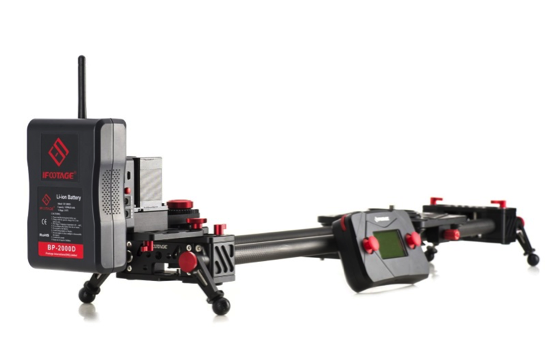

The S1A1 provides wireless motion control of the Shark carriage, and shutter control for the camera. It includes a V-mount battery (95 WH) and charger, and a sturdy carrying case. Programming of carriage movement is versatile and easy. The camera shutter control programming makes this system an amazing product for time-lapse photography/video.
And the S1A1 attaches to the Shark slider in just minutes without tools!

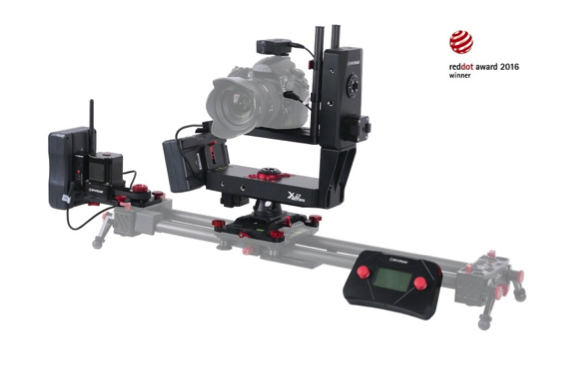

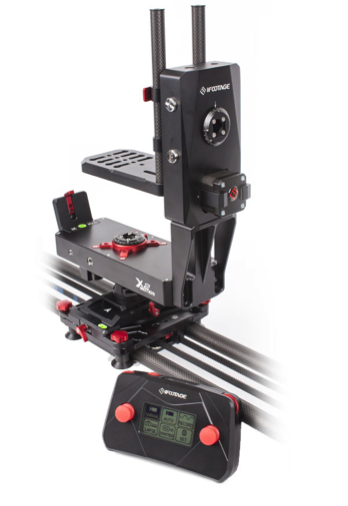

3 Axis Motion Control
The X2 systems can be combined with an S1A1 to add 2 axis tilt and pan motion control. The X2 can be powered from the same V-mount battery on an S1A1, or can have its own battery.
All the motors are very quiet!
The maximum camera payload for the X2 mounted on a shark is recommended to be less than 9 lbs.

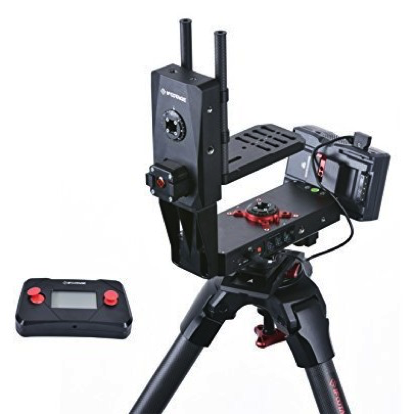

Standalone 2 axis motion control
A standalone X2 system with battery and wireless control, along with wireless camera shutter control can be purchased for mounting on tripods, cranes, etc. to provide tilt and pan control of the camera.
As a standalone 2 axis system, the maximum camera payload of the X2 is 16 lbs (optimum payload is less than 9 lbs.)
Products – Click on any item below for additional information or to order, or:
Click HERE for a comparison chart of the motion control systems
Motion Control Systems Comparison Chart
 |

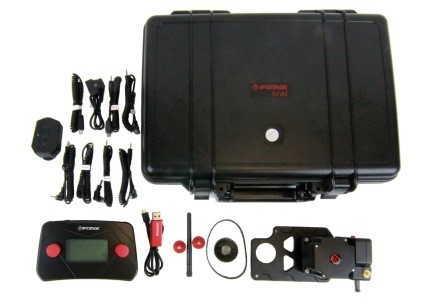

S1A1S -- $1103.70 Complete system for single axis carriage motion and camera shutter control, for mounting onto a Shark slider. Does not include V-mount battery and charger. |
 |

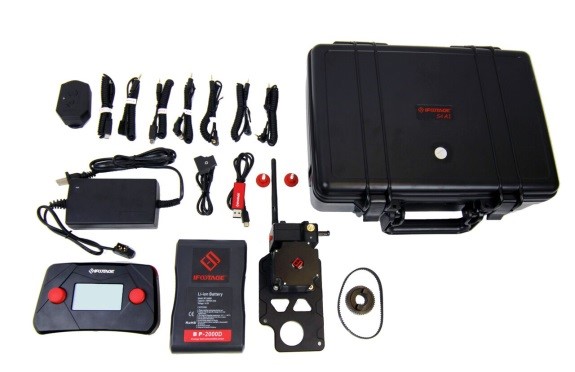

S1A1 -- $1359 Complete system for single axis carriage motion and camera shutter control, for mounting onto a Shark slider. Similar to S1A1S, except includes a V-mount battery and charger. |
 |
X2SB0 -- $1400 This is not a stand alone pan and tilt system. It is intended for combining with an S1A1 (or S1A1S if you have your own V-mount battery) Does not include V-mount battery and charger. |
 |

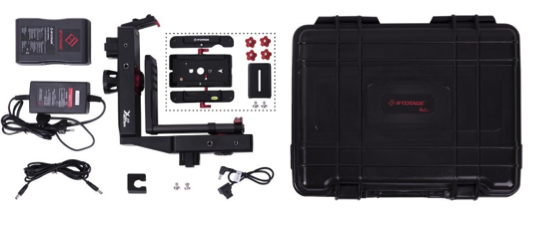

X2SB1 -- $1695 This is not a stand alone pan and tilt system. It is intended for combining with an S1A1S (or S1A1 if want a 2nd V-mount battery). Same as X2SB0 but includes V-mount battery and charger. |
 |

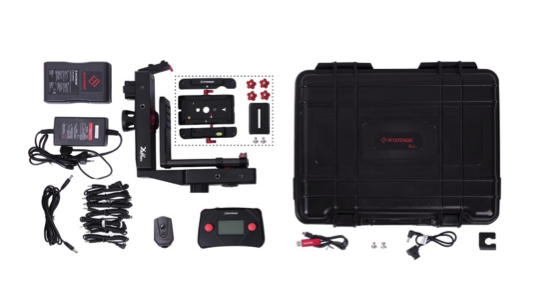

X2B1 -- $1857 This is a complete stand alone 2 axis motion (pan and tilt) system with battery power and camera shutter control. Mount it on any platform… Slider, tripod, crane etc. |
 |

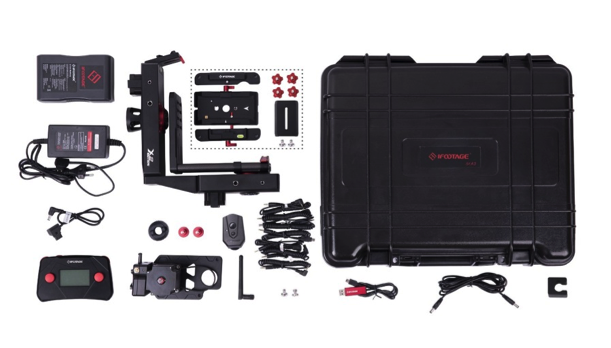

S1A3B1 -- $2559 This is a complete 3 axis motion system with camera shutter control for the shark slider. All components come in one large case (which also has a pocket for a 2nd V-mount battery). The 2 axis pan and tilt motion system and camera shutter control components in it could be a stand alone pan an tilt system mounted on any platform. |
| For additional information email us at sales@camotionllc.com, or give us a call at 919-876-6020. | |
A Completely Programmable System
Just like actors who require practice to get that dialogue just right, videographers often need to reshoot the same scene repeatedly. This is where the S1A1 comes in; it registers up to 9 different tracks with programmed movements.
The tracks are easily accessible from the data packet and can be reused as needed. With repeated moves at different lengths of time, a wide range of visual effects can also be achieved easily.
In addition, the S1A1 offers 'Manual Mode' which is perfect for run-and-gun style without losing precision. Its user friendly interface allows you to grab shots on-the-fly with no pre-programmed motion control.
. . . And the same controller is used for 3 axis systems.
Time Lapse and Stop Motion At Your Fingertips
iFootage Single Axis' strength is the time-lapse shoot. It controls the time-lapse by the number of stills as well as length of time. It has an Ease In/Out function and a Preview setting which helps users understand the video effect before shooting therefore increasing their success rate. Stop motion is also made easy with the S1A1. All you have to do is set up the number of frames and the time and then simply advance through each position to achieve a flawless end product.

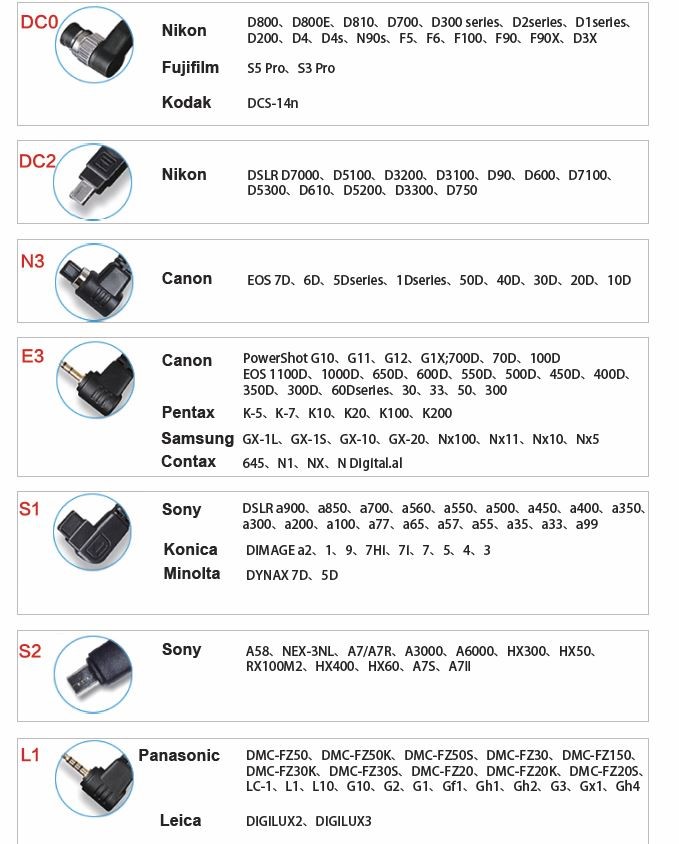

Included camera control shutter cables and supported cameras list:
Built-In Quality
You will instantly notice the build quality of S1A1. We understand that our users venture into extreme environments so the control system is built to withstand the harshest of conditions. Solid aluminum and quality craftsmanship are trademarks of Shark Slider S1A1. It is solid and sturdy, supporting a maximum load of 8kg. With the 95WAH battery you will get a working time of approximately 12 hours in a continuous video shoot or 16 hours in time-lapse mode.
Motion X2 . . .
Perfect Companion for S1A1
Motion X2 was perfectly built to be used with the iFootage S1A1 wireless motion control system. Together with it you can get the automatic mode, track recording for pre-recorded movements, and it opens you to a world of flexibility for your cameras. Also you would get the ability for simple parallax adjustments.
Of course the Motion X2 can also be used standalone.
360° Panoramas
Motion X2 enables you to easily create beautiful 360° panoramic images, or giving you the ability to shoot videos in any angle. Autopano software is the perfect companion for a videographer that shoots panoramas.
Time Lapse and Stop Motion
Panoramas are not the only thing Motion X2 can do, it can also create time-lapses and stop motion videos. It has an Ease In/Out function and a Preview setting which helps users understand the video effect before shooting therefore increasing their success rate. Stop motion is also made easy with the S1A3 (S1A1 + X2).
Specifications
| S1A1 | Motion X2 | Camera Shutter Control |
|---|---|---|
| Speed range: .0004 in/s~ 6 in/s | Speed range: .0004 in/s~ 6 in/s | Frequency: 2.4 Ghz |
| Location accuracy: .0004 in | Location accuracy: .0025 deg | Operating voltage: 3.7 V |
| Maximum load: 17.6 lb | Motor power: 8-32 W | Operating time: 50 hr |
| Motor power: 8-32 W | Speed reg: stepless speed/step speed | Weight: .09 lb |
| Operating voltage: 14.8 ~24 V | Operating voltage: 14.8 ~24 V | Operating distance: 65 ft |
| Controller RF frequency: 2.4 Ghz | Controller RF/range: 2.4 Ghz/65 ft | Battery: 2 x AAA |
| Controller range: 65 ft | Optimum load: 8.8 lb | |
| Speed control: adjustable speed/gearing speed | Maximum load: 17.6 lb | |
| Weight: 5.5 lb. |
