Radian

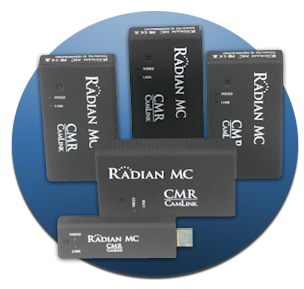

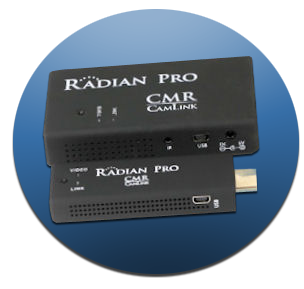

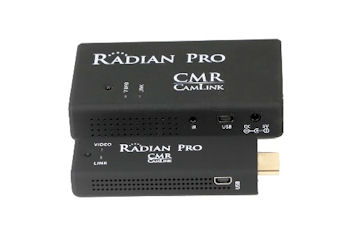

CMR Radian wireless HD transmitters and receivers are manufactured with Amimon WHDI professional quality chip sets for best uncompressed resolutions and frame rates up to full 1080P(60), near zero latency, and line-of-sight range over 300 feet.

Radian sets operate on the unlicensed 5 GHz band, and transmitters and receivers require 5 volt power. They have simple plug in and play operation, and the best channel is selected automatically on power up, and seamlessly switched if necessary during operation if conditions change.

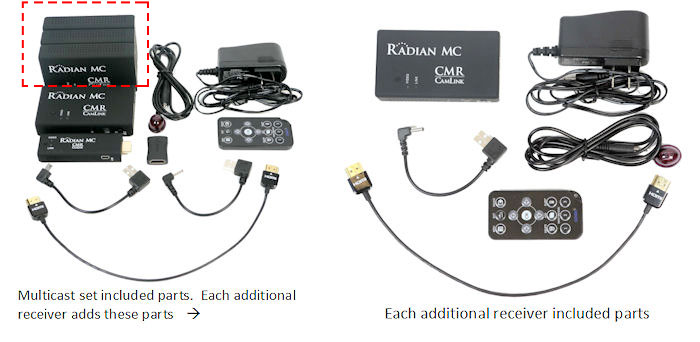

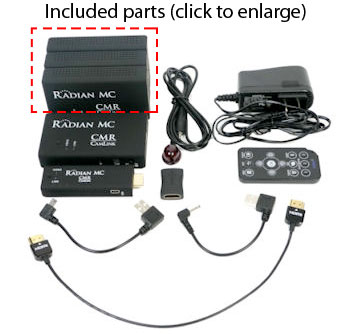

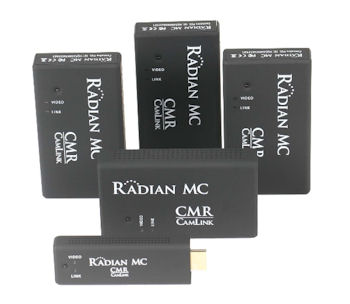

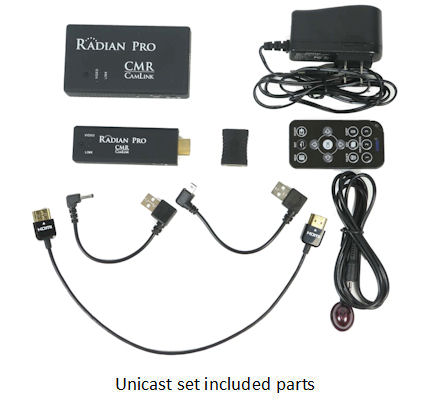

Choose Unicast or advanced Multicast capability

Experience the Versatility

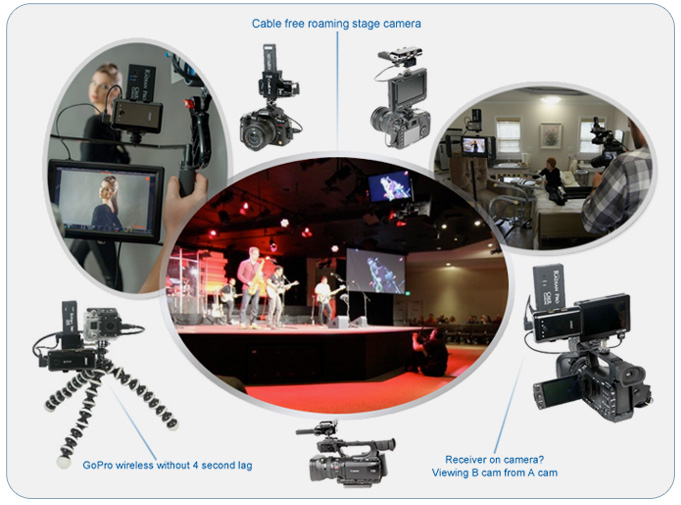

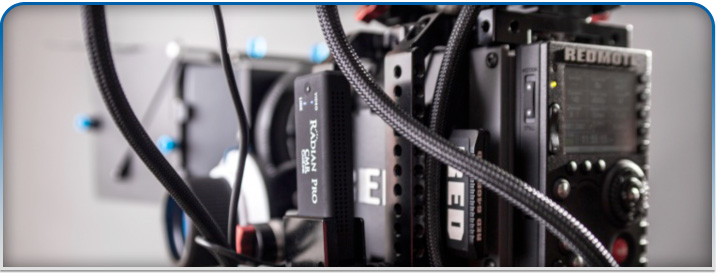

Wireless video connections eliminate the need for trailing cables from cameras to a director’s monitor or video village. They free up camera operators from the distraction of directors/DPs or clients crowding around the camera to see what is being shot. They are perfect tools for camera crane operation, or for follow focus assistants working with a steadycam operator, and with the new multi-axis stabilizers coming on the market. Radian wireless sets provide new possibilities for affordable cable free video connections up to HD resolution at sporting events, entertainment venues, and faith services.

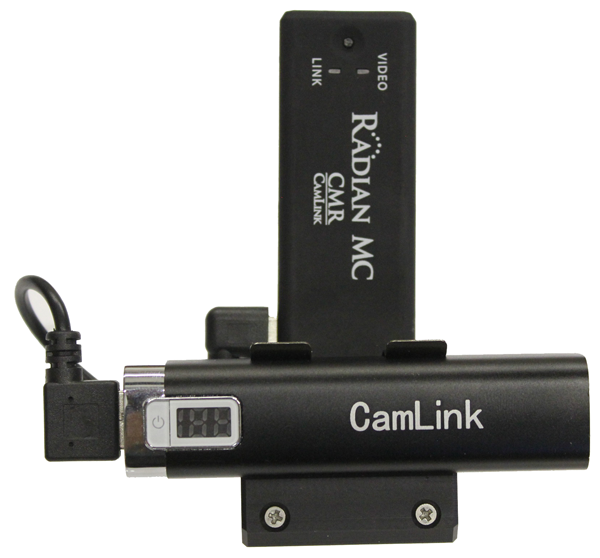

CMR Radian wireless sets combined with CMR Camlink Backbones provide compact wireless video solutions using USB batteries for more than 6 hours of operation for both the TX (transmitter) and RX (receiver). The large battery option on the TX Backbone (simply move one battery clip) can extend operating time to 10 hours without a battery change.

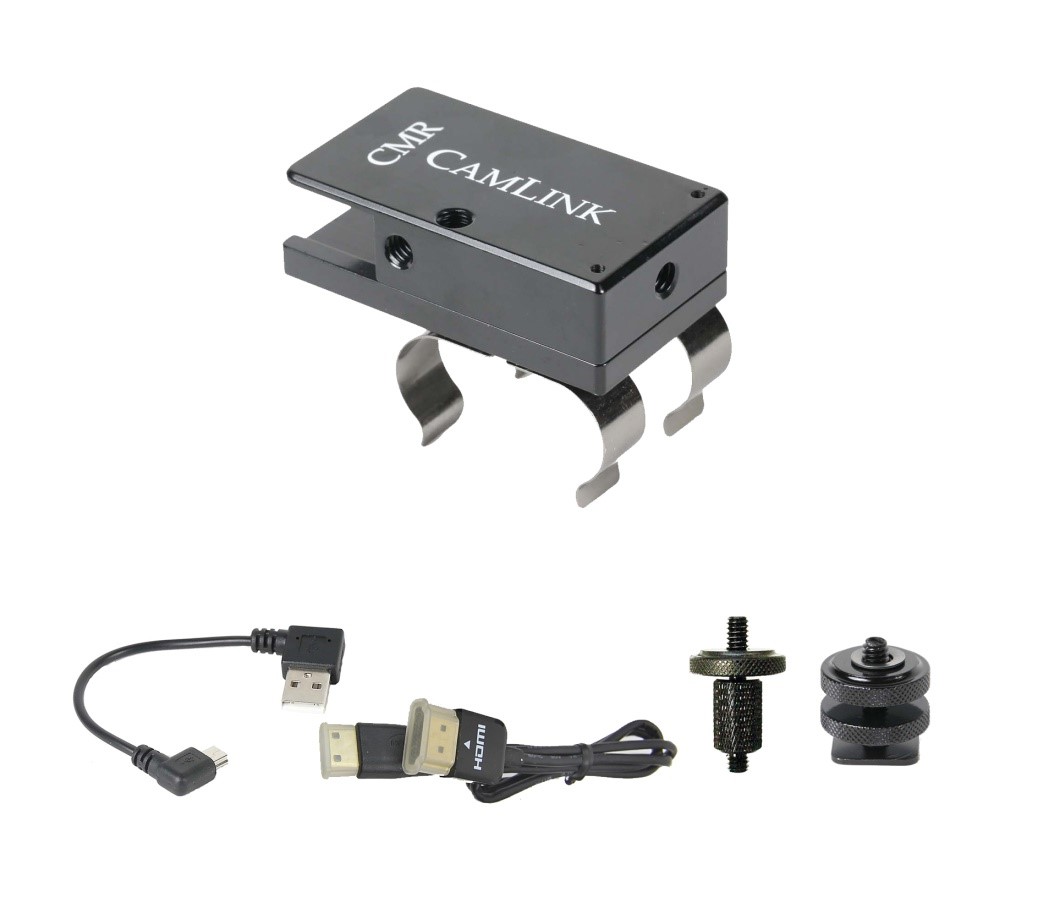

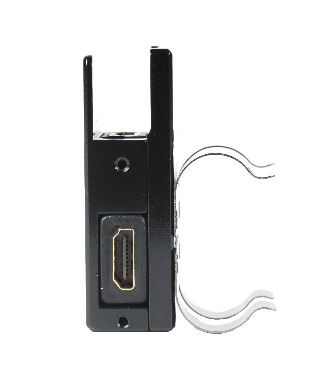

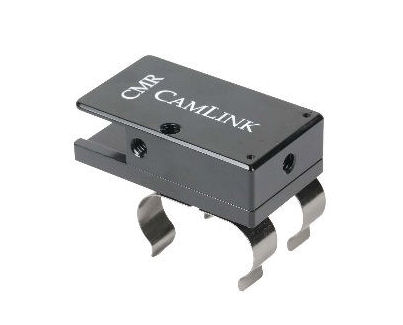

Backbones are made from milled anodized aluminum, and battery clips are chrome plated spring steel. The TX and RX Backbones each have three orthogonal ¼-20 threaded mounting holes, and include camera hot shoe mounts (TX only) and thumb studs with locking nut accessories for mounting to cameras and monitors or other rigs. Both TX and RX Backbones include USB power cables and thin HDMI cables. TX includes accessory/thru hole mounting block.

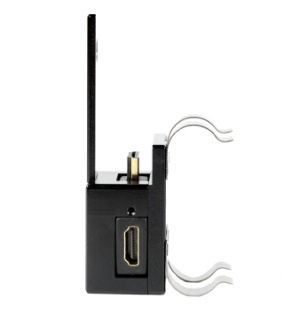

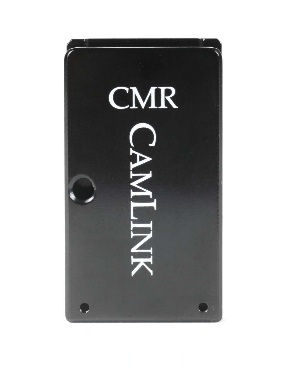

CamLink TX and RX Backbones

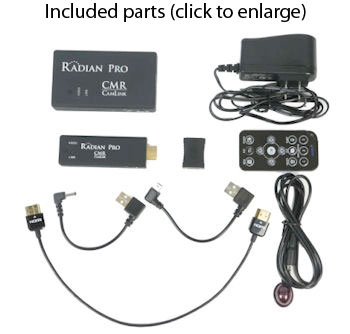

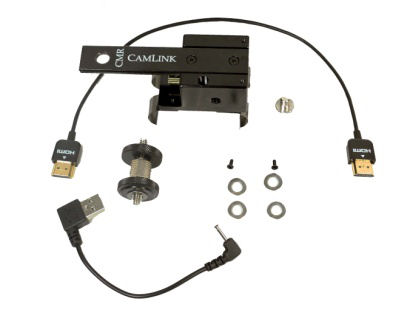

TX BackBone		Included Parts

TX Backbone Specifications

RX BackBone		Included Parts

RX Backbone Specifications

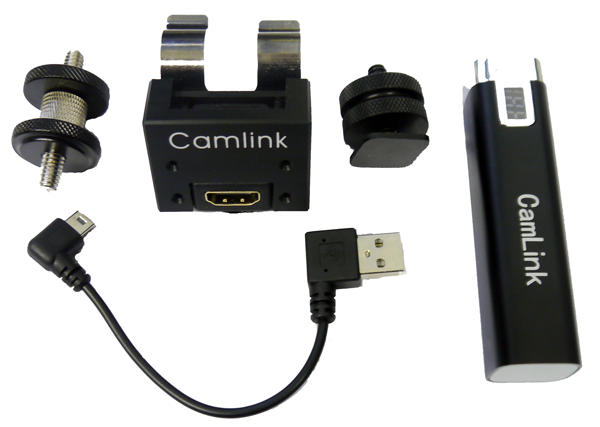

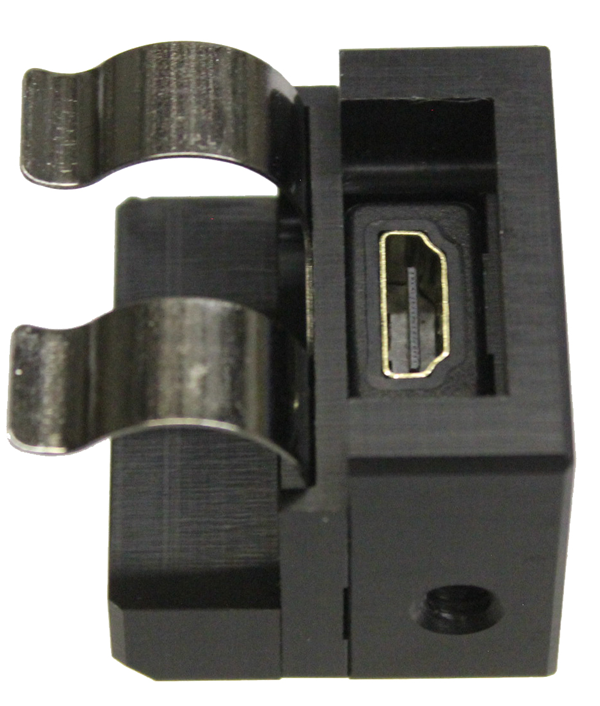

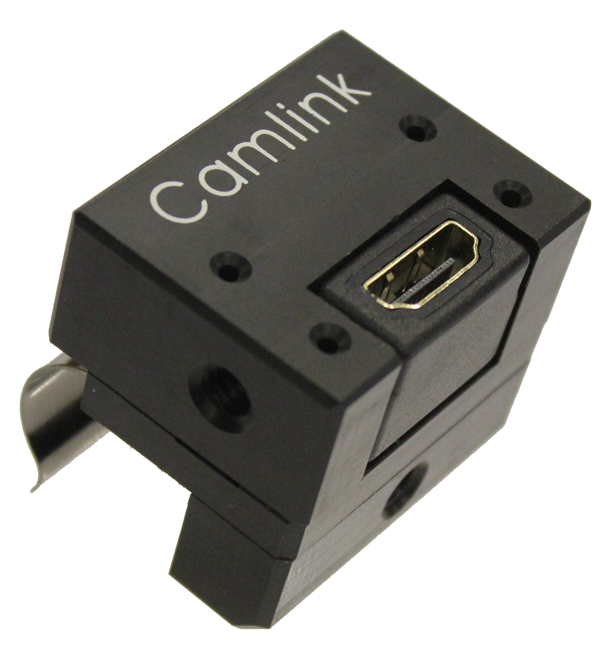

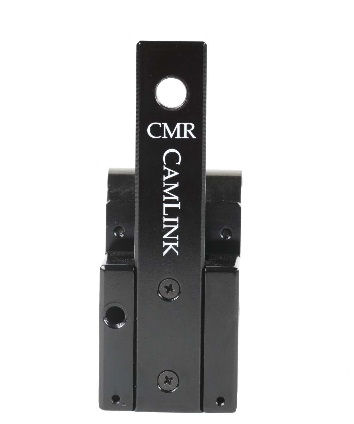

NEW! The MINI TX Backbone requested by customers wanting the smallest and lightest transmitter package with self-contained power is now available. The MINI TX Backbone is made from machined delrin , and our chrome plated spring steel battery clip. It has two ¼-20 mounting holes. The MINI TX Backbone uses a smaller lithium battery that powers the transmitter for over 3 hours. The battery has an on/off switch , and a very accurate digital display of remaining % power, that indicates both during powering, and during charging. The MINI TX BackBone kit ships with one battery, USB power cable, anodized aluminum thumb stud, cold shoe mount, and choice of thin HDMI. Weight including Radian TX, backbone and battery is 6 oz.

MINI TX Backbone Specifications

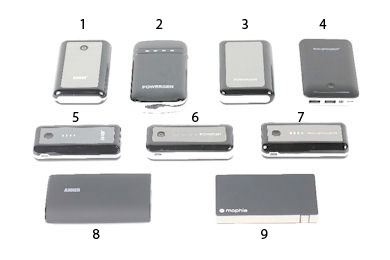

Batteries

Radian Case

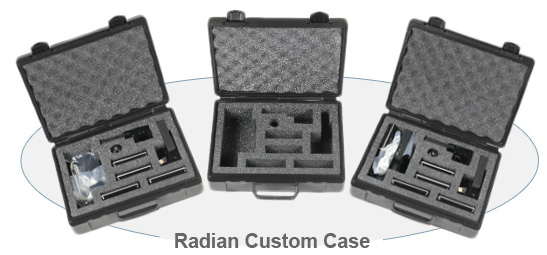

The Radian case provides compact and light weight protection for your Radian wireless system components. The case has pockets for a Radian Pro transmitter and receiver with Backbones attached, along with pockets for 4 batteries, power and HDMI cables, USB battery charger, hot shoe adaptors and thumb studs. It can also be used to store a multicast transmitter and 2 receivers with Backbones along with 5 or 6 batteries and other accessories.

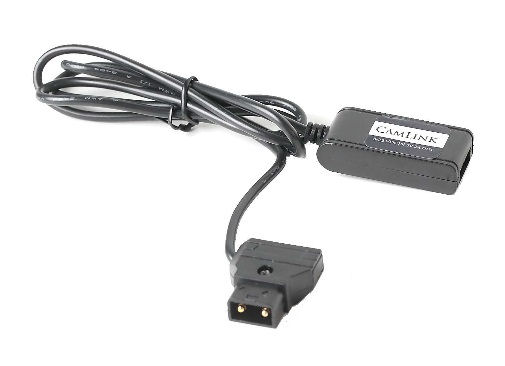

D-tap Power

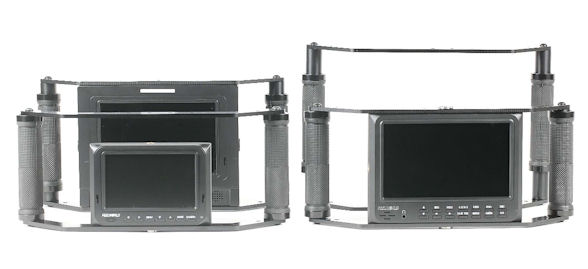

Director’s Monitor Yoke

CamLink monitor yokes are lightweight anodized aluminum construction with comfortable hand grips. Each beam has six 1/4-20 threaded holes for accessories. Yoke height is adjustable from 5 ¼ in. up to 8 in., and handle spacing accommodates monitors up to 10 in. wide.

_____________________________________________________________________________________

Radian and CamLink Wirelsss Products Price List

For shipment to EU countries please contact us at sales@camotionllc.com.
