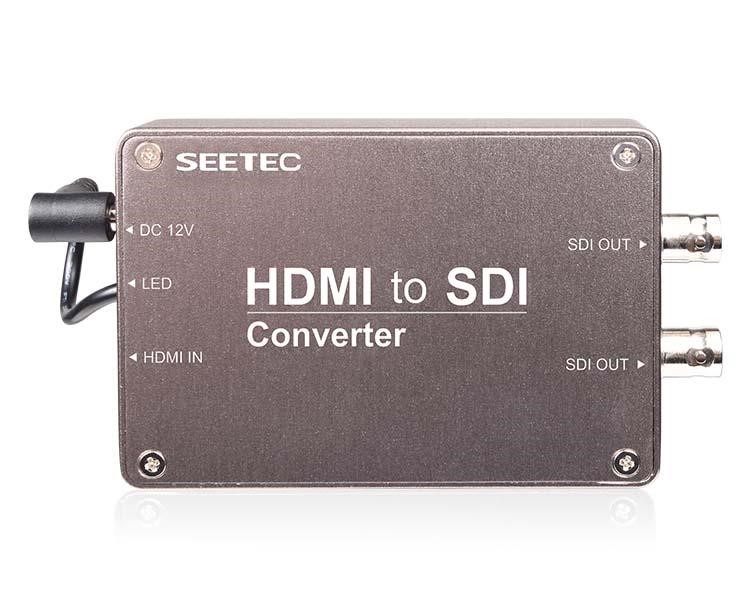

Model HTS (HDMI to SDI Converter)
$100
- 1 HDMI Input, 2 SDI Output
- Double Power Supply System – AC Adaptor and NP Battery Plate

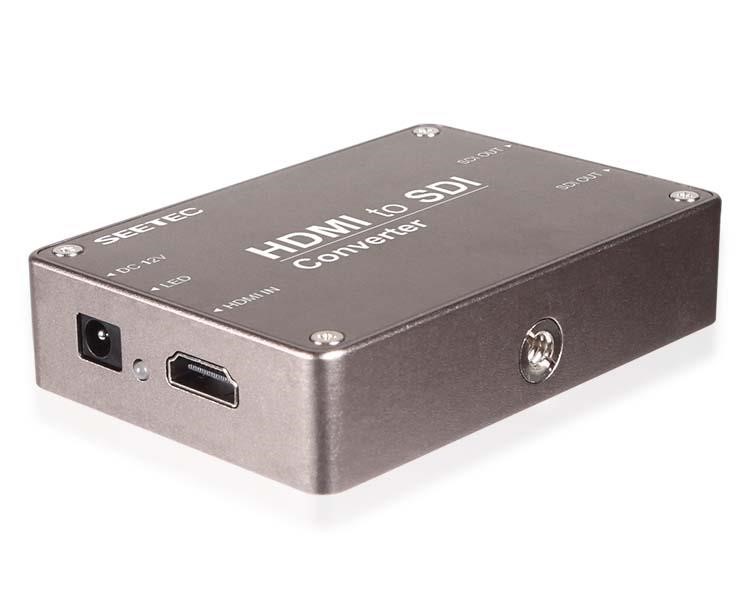

- Standard ¼-20 Screw Threads for mounting
- Power/Input/Output Status Indicator
- Heavy Duty Aluminum Housing
Input Connections: 1 X HDMI
Output Connections: 2 x BNC 3G/HD/SD-SDI
SDI Supported Formats:
- 1080P(60/59.94/50/30/29.97/25/24)
- 1080I(60/59.94/50)
- 720P(60/59.94/50/30/25/24)
- SD-SDI:576(50),480I(60)
HDMI Supported Formats:
- 1080P(60/59.94/50/30/29.97/25/24)
- 1080I(60/59.94/50)
- 1080PsF24*
- 720P(60/59.94/50/30/25/24)
- 576I(50),480I(60)
| Power Consumption: | ≤3W |
| Input Voltage: | DC 5～24V |
| Power Connector: | Barrel plug |

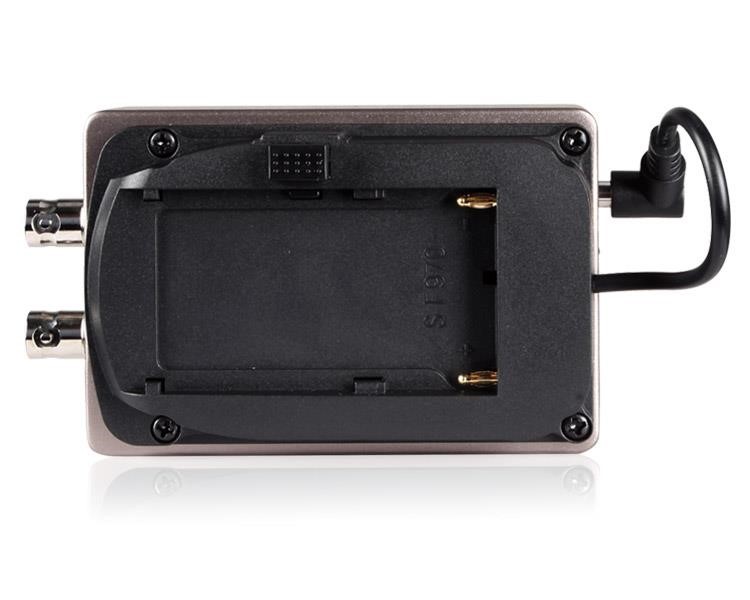

| Battery Plate: | F970 (Standard); D28S, E6 (Optional) |
| Working Temperature: | -20°C~60°C |
| Storage Temperature: | -30°C~70°C |
| Unit Size (mm): | 98.8L×67.4H×22.8D mm |
| Unit Weight: | 180g/210g (With F970 Plate) |
*1080PsF24 – Generally compatible with most monitors. Will not work with Amimon Connex/Mini.
Note: A third powering option with a D-tap cable, CMR PN DT30 (for Connex/Mini ground unit) is also available.

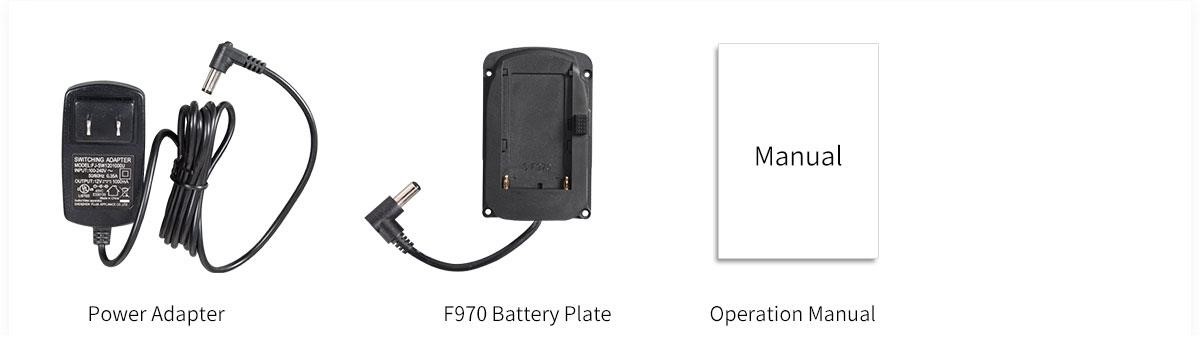

INCLUDES

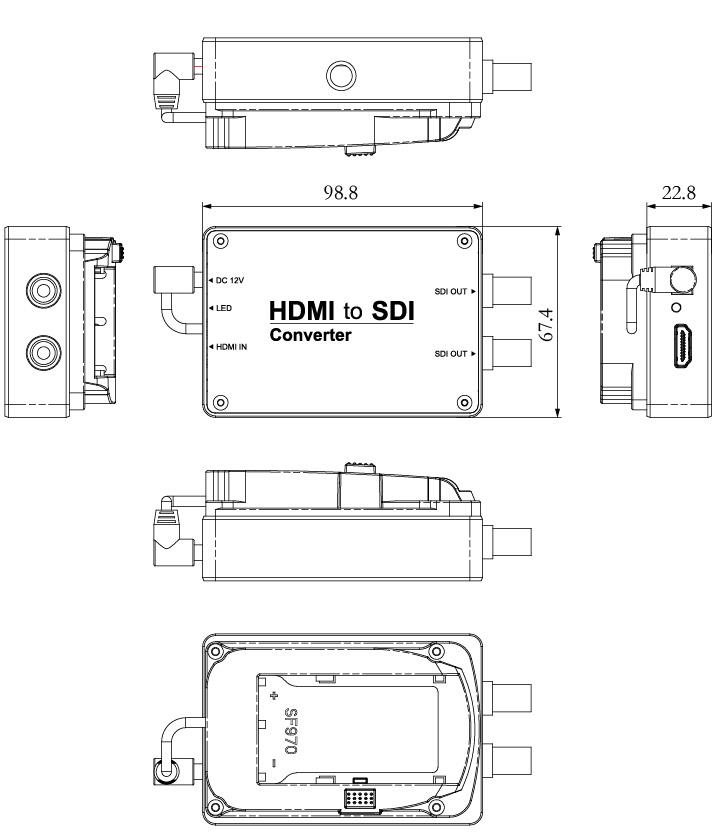

DIMENSIONS (mm)
