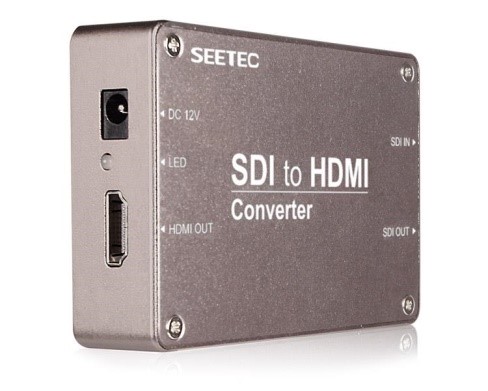

Model STH (SDI to HDMI Converter)
$100

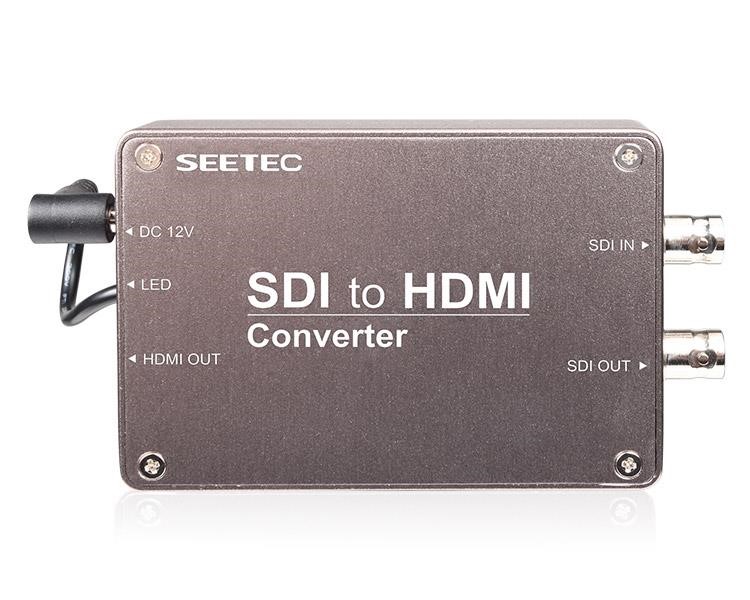

- 1 SDI Input, 1 HDMI Ouput, 1 SDI Loop Output
- Double Power Supply System – AC Adaptor and NP Battery Plate

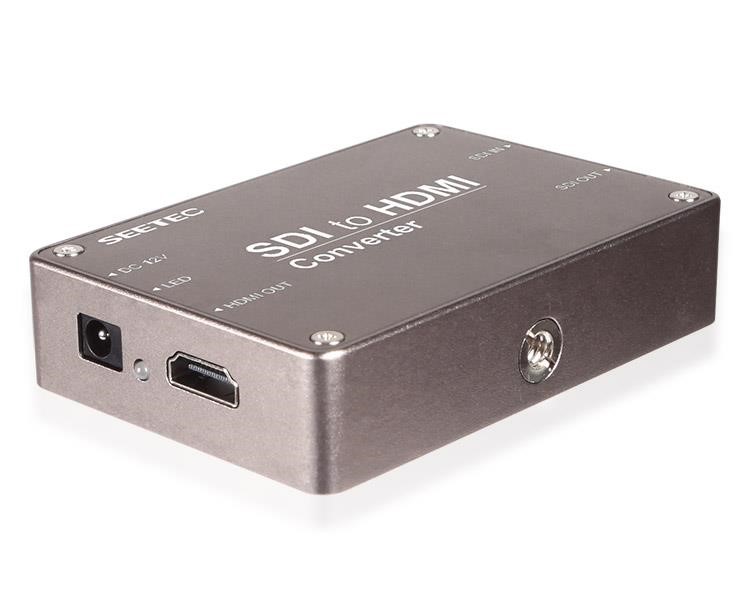

- Standard ¼-20 Screw Threads for mounting
- Power/Input/Output Status Indicator
- Heavy Duty Aluminum Housing
Input Connections: 1 X BNC3G/HD/SD-SDI
Output Connections: 1 x HDMI, 1 x BNC 3G/HD/SD-SDI loop out
SDI Supported Formats:
3G-SDI:1080P(60/59.94/50)
HD-SDI: 1080P(30/29.97/25/24)
1080I(60/59.94/50)
1080PsF24*
720P(60/59.94/50/30/25/24)
SD-SDI:576(50),480I(60)
HDMI Supported Formats: 1080P(60/59.94/50/30/29.97/25/24) 1080I(60/59.94/50) 1080PsF24* 720P(60/59.94/50/30/25/24) 576I(50),480I(60)
| Power Consumption: | ≤3W |
| Input Voltage: | DC 5～24V |
| Power Connector: | Barrel plug |

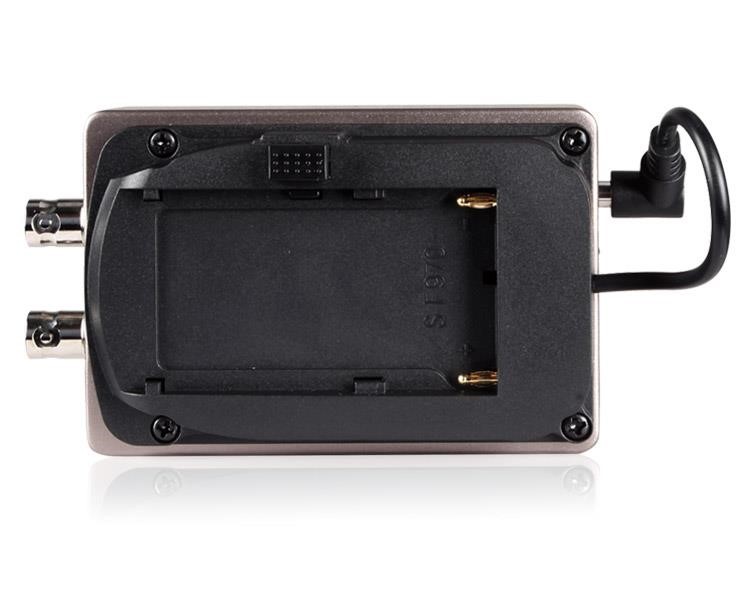

| Battery Plate: | F970 (Standard); D28S, E6 (Optional) |
| Working Temperature: | -20°C~60°C |
| Storage Temperature: | -30°C~70°C |
| Unit Size (mm): | 98.8L×67.4H×22.8D mm |
| Unit Weight: | 180g/210g (With F970 Plate) |
*1080PsF24 – Generally compatible with most monitors. Will not work with Amimon Connex/Mini.
Note: A third powering option with a D-tap cable, CMR PN DT30 (for Connex/Mini ground unit) is also available.
INCLUDES

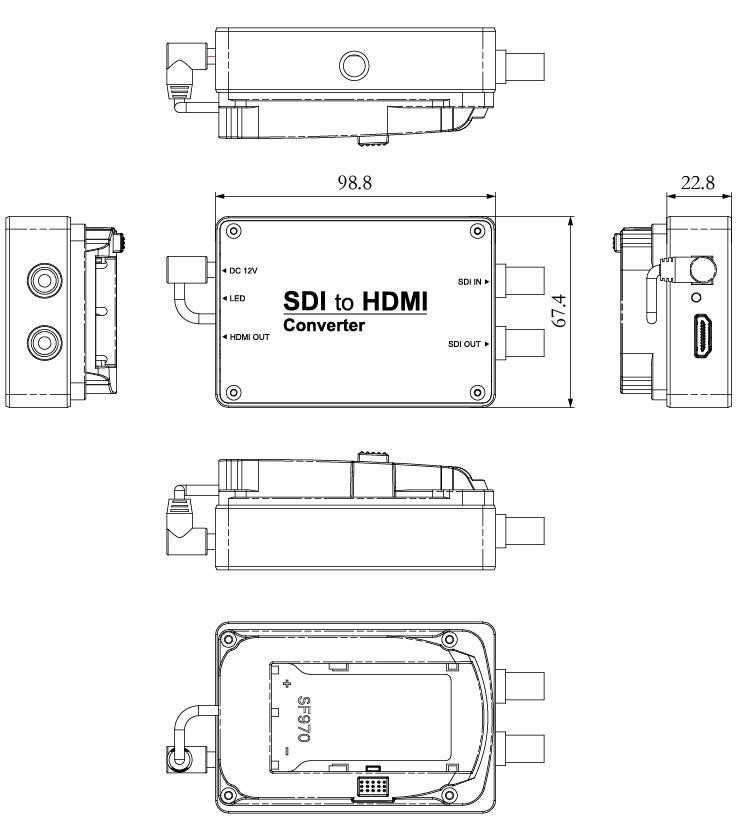

DIMENSIONS (mm)
