CMR ACCENT Connex Mini 1600 ft. Fusion 3300 ft.

Camera Motion Research White Paper on High Performance Wireless HD Video

Amimon Connex 3300 ft.



hero

Connex Easy Ordering Guide

Click to Expand

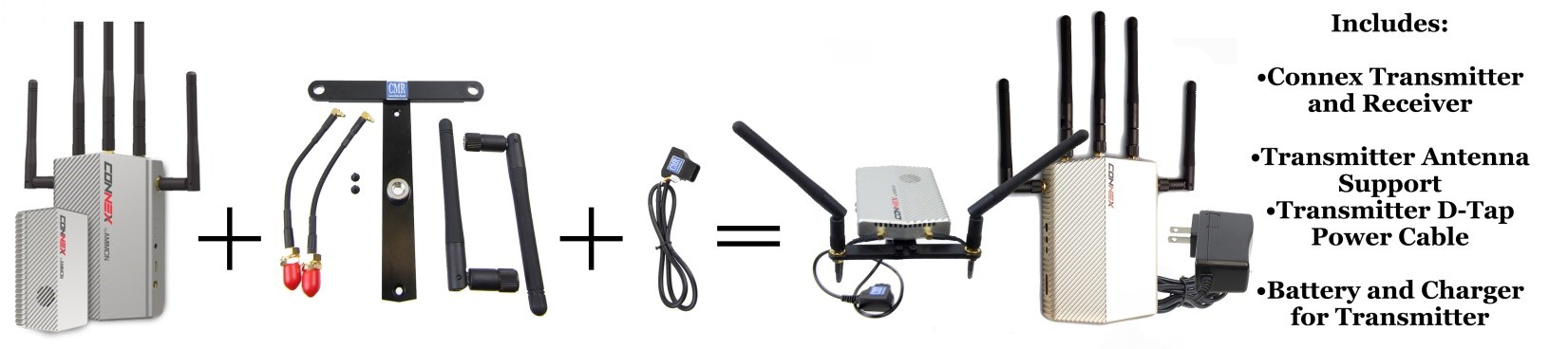

  1. Basic combination if you have D-tap power available for the transmitter and AC power for the receiver. Total Cost $1717

    Order PN: CONN Connex set and PN: ACAX Transmitter support and PN: DT15 D-tap Power cable for transmitter.

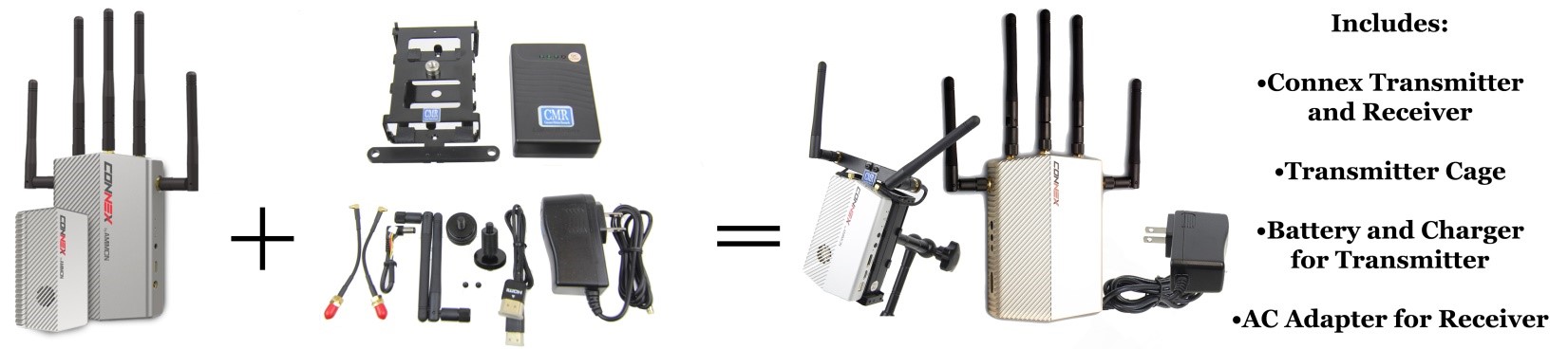

  2. Basic Combination provides battery power for the transmitter and AC power for the receiver. Total cost $1778

    Order: PN: CONN Connex set and PN: ACAXB Connex Transmitter Battery Cage Kit

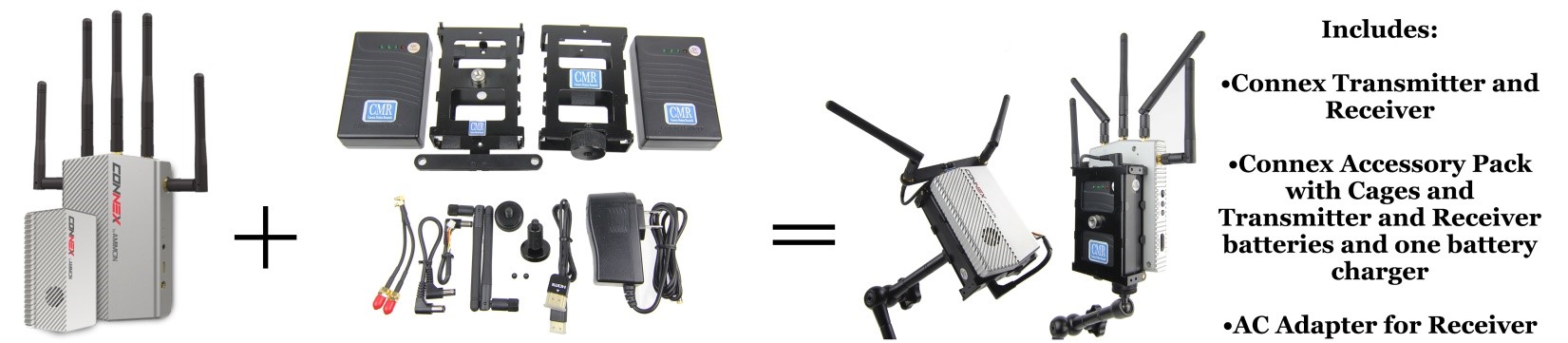

  3. Basic combination provides battery power both the transmitter and receiver. Total cost $1624

    Order: PN: CONN Connex Set and PN: AP10 Connex Accessory Pack

Click on any item to order

Wireless Sets and Cage Product Listing

Connex Set Connex Set

PN: CONN
Connex Fusion Receiver Connex Fusion Receiver

PN: CONR
Connex Set Connex Accessories Pack

PN: AP10

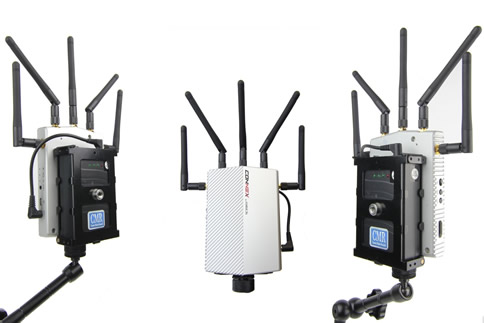

TX Battery Cage Kit Connex Transmitter Battery Cage Kit

PN: ACAXB
RX Battery Cage Connex Reciever Battery Cage Kit

PN: ACGB

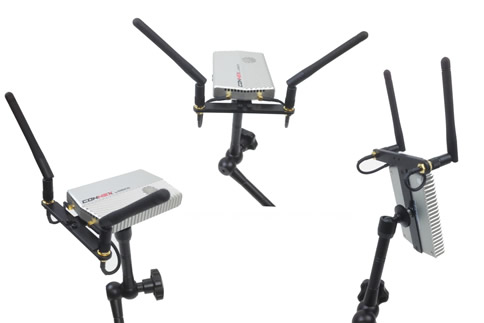

TX Antenna Support Connex Transmitter Antenna Support

PN: ACAX
Fusion Hard Case Connex Hard Case

PN: CA30

Batteries, Chargers, Cables, Antennas

Lithium Battery 12 Volt Lithium Battery with Charger

PN: BA12BC
AC Adapter for Connex Transmitter AC Adapter for Connex Transmitter

PN: BACCMAC
AC Adaptor for Mini Receiver AC Adaptor for Mini Reciever

PN: BA8M
D-tap Power Cable For Air Unit D-tap Power Cable For Air Unit

PN: DT15
D-tap Power Cable For Ground Unit D-tap Power Cable For Ground Unit

PN: DT25
Air Unit Power Cable Connex Transmitter Power Cable

PN: PC10
Ground unit Power Cable Connex Reciever Power Cable

PN: PC20
Ground Unit Antenna Replacement Rod Antenna

PN: ANTG
Thumbstud Mounting Thumbstud

PN: TS10

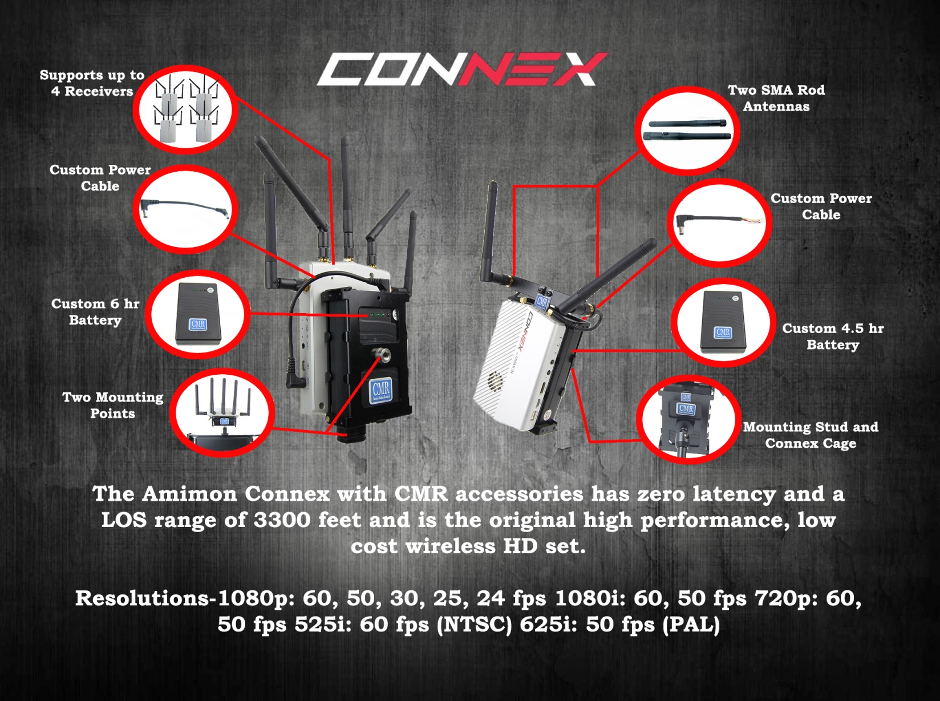

Connex wireless video sets were introduced by Amimon to meet demanding aerial wireless HD requirements, and they provide robust connections with range up to 3300 ft. LOS.

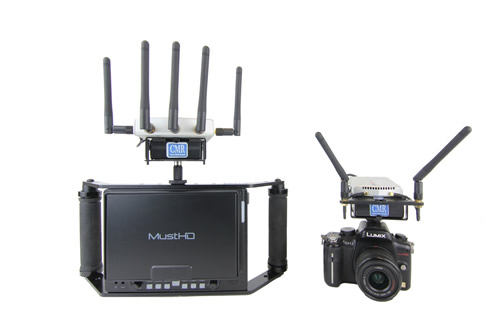

And soon after, CMR introduced accessories for Amimon Connex wireless HD sets, allowing them to be used with standard camera rigs by providing engineered antenna mounts and power options.

Professionals using Connex wireless sets can increase the utility and versatility of their sets with the line of CMR Connex accessories.

Connex Specifications

Click to Expand
Criteria Specification
Distance (Outdoor) Up to 3,300ft./1,000m (LOS)
Transmission Delay Zero (Less than 1mS)
Radio Frequency 5.1-5.8 GHz
Channel Selection Automatic frequency selection (AFS)
Video Formats 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p25,
1080p/24, 720p/60, 720p/50, 525i/60, 625i/50
Multicast Mode Up to 4 receivers with no delay or quality degradation (Requires extra ground unit/s)
OSD Support MAVLINK Telemetry Based
Encryption AES-128 & RSA 1024 for key exchange
Operating Temperature 0-45 Celsius
Regulations CE, FCC, MIC
Criteria Air Unit Ground Unit
Video Interface mini HDMI HDMI (Type A)
Antenna Connectors MMCX (x2) SMA (x5)
Power Connector 4-pins DC Jack
Power Input 8-26V (3S-6S) 7-19V
Dimensions 102 x 63.6 x 15.6 129 x 89 x 20
Weight 130 grams 260 grams

Download CMR Accessories for the Amimon Connex Quick Guide (PDF)
