Amimon Connex Mini Sets -- 1600 Ft. LOS Range
Connex Mini Transmitter and Receiver Easy Ordering Guide

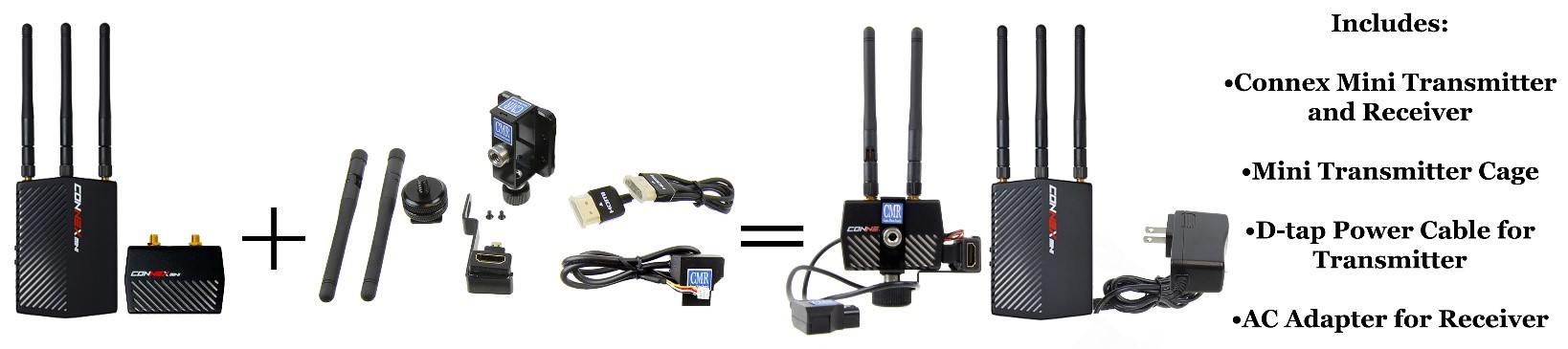

Click to ExpandBasic combination if you have D-tap power available for the transmitter and AC power for the receiver. Total cost $1479
Order: PN: CONNM Connex Mini Set and PN: ACAXBD Connex Transmitter D-tap Cage

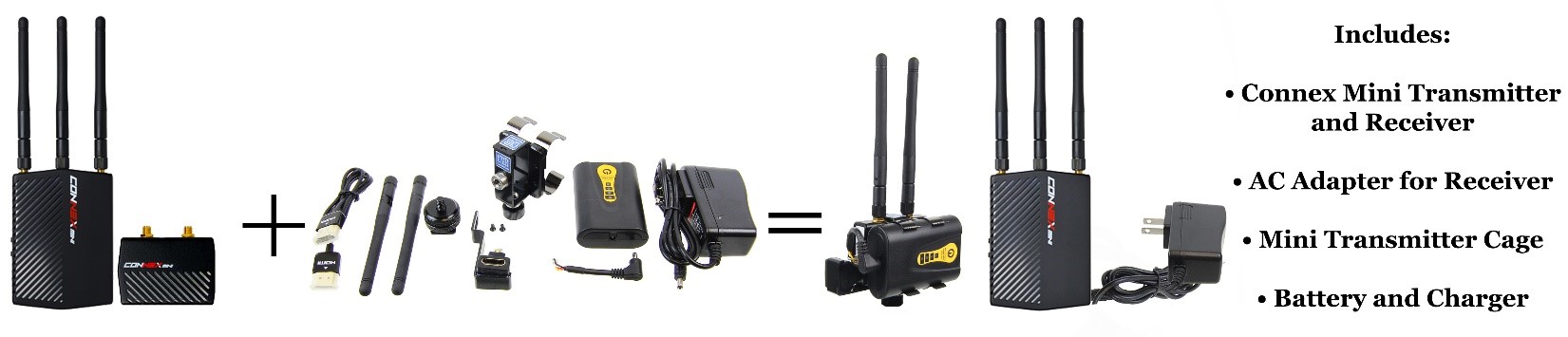

This combination provides battery power for the transmitter and AC power for the receiver. Total cost $1487

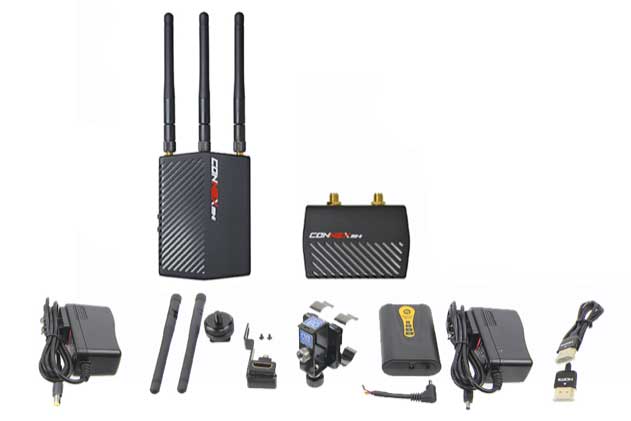

Order: PN: CONNM Connex Mini Set and PN: ACAXBM Connex Mini Transmitter Kit, or simply order PN: CONNMK2 which includes both items.

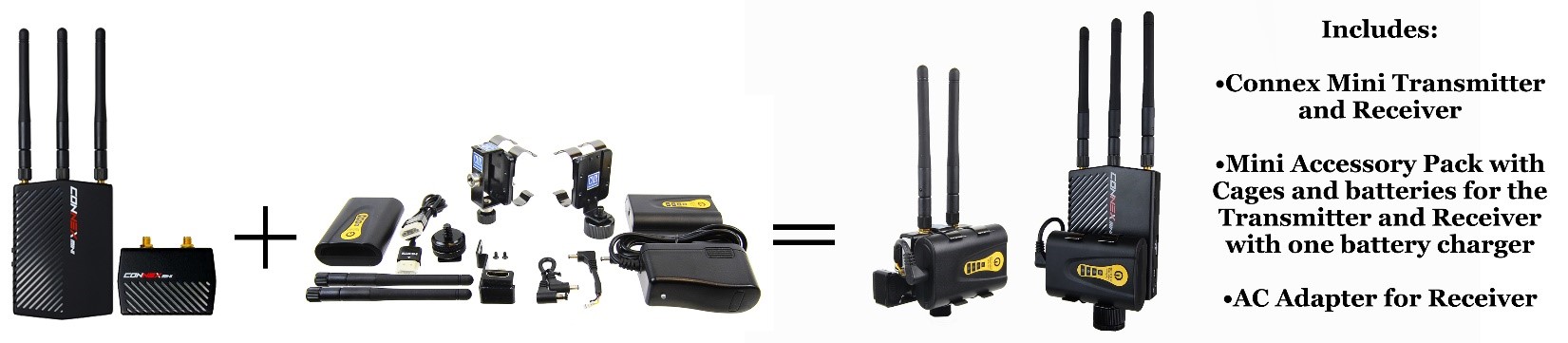

This combination provides battery power for both the transmitter and receiver and also AC power for the receiver. Total cost $1574

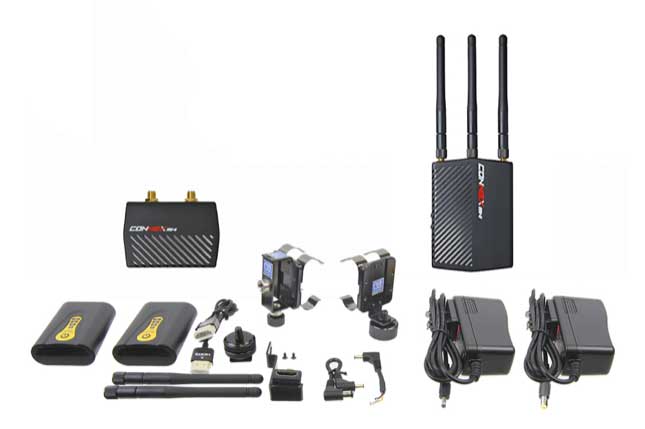

Order: PN: CONNM Connex Mini Set and PN: AP10M Connex Mini Accessory Pack, or simply order PN: CONNMK1, Connex Mini 1600 Kit 1.

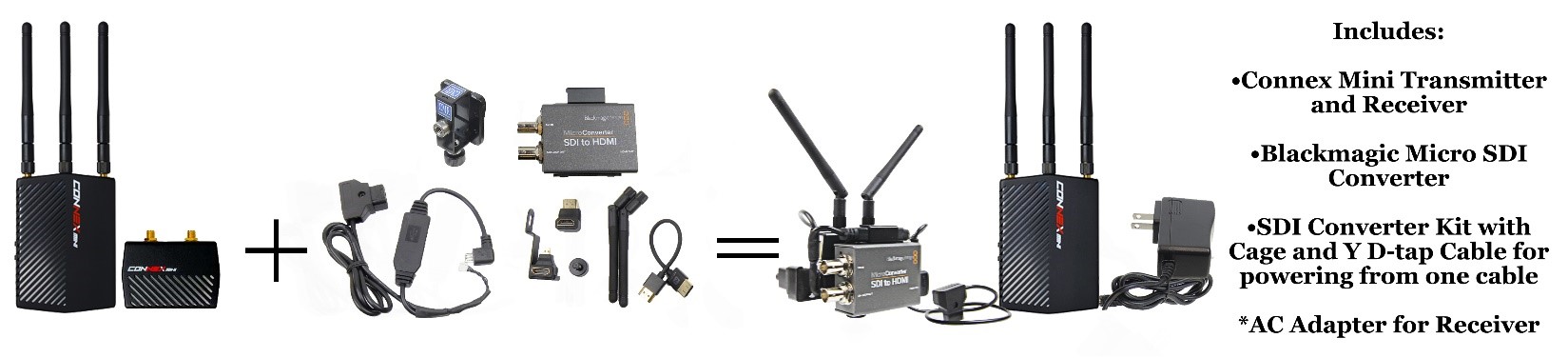

This combination provides a Transmitter SDI solution with D-tap power for the Transmitter & Blackmagic Micro Converter and AC power for the Receiver. Total Cost: $1624
Order: PN: CONNM Connex Mini Set and PN: TXSDIM Connex Mini Accessory Pack
Click on any item to order
Wireless Sets and Cage Product Listing
Batteries, Chargers, Cables, Antennas

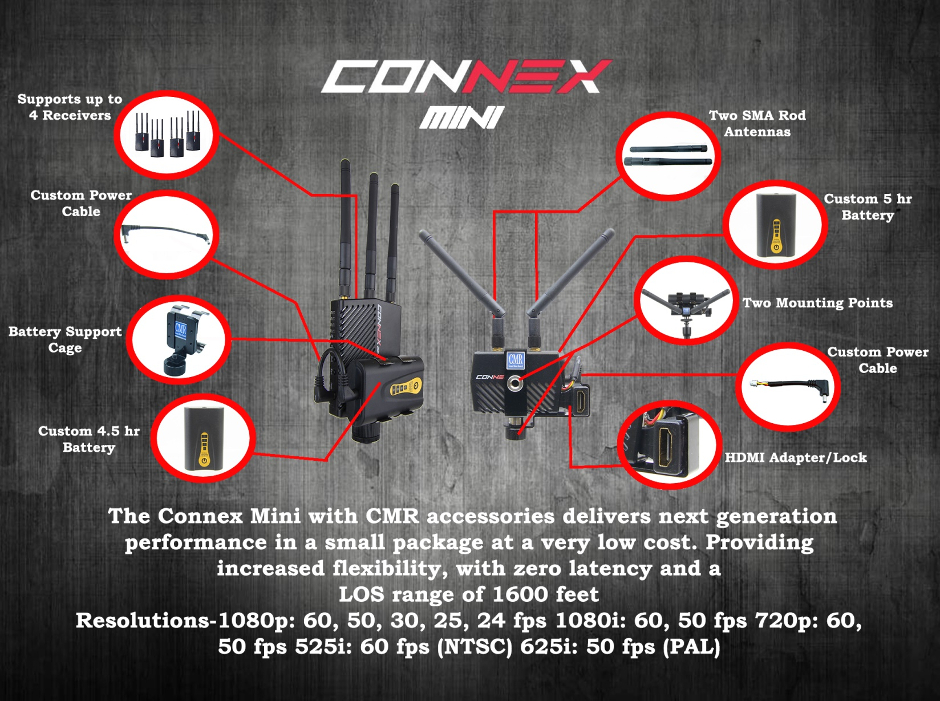

Combined with CMR accessories, the Amimon Connex mini provides industry leading performance/cost benefit opportunities for wireless HD in any production environment or venue.
The Connex mini transmitters and receivers are smaller and lighter than the original Connex. The transmitter does not have a cooling fan, and power consumption of both the transmitter and receiver is lower than the Connex. The transmitter with ~ 5 hr. battery weighs only 8.4 oz, and the receiver with ~ 5 hr. battery weighs only 11.6 oz.
The Connex mini shares most of the wireless performance characteristics of the original Connex, with the exception of LOS range 1600 ft. And like the Connex, the mini does not transmit audio.
Connex Mini Specifications
Click to Expand| Feature | CONNEX Mini |
|---|---|
| Transmission Distance (Outdoor) | Up to 1,600 ft/500m (LoS) |
| Transmission Delay | Zero (Less than 1mS) |
| Radio Frequency | 5.1-5.8 GHz |
| Channel | 40 MHz |
| Channel Selection | Automatic frequency selection (AFS) |
| Video Formats | 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/24, 720p/60, 720p/50, 525i/60, 625i/50 |
| Multicast Mode | Up to 4 receivers with no delay or quality degradation. (Requiring extra ground unit/s) |
| OSD Support | CANBUS & MAVLink Telemetry based |
| Gimbal control | SBUS & PPM |
| Encryption | AES-128 & RSA 1024 for key exchange |
| Operating Temperature | 0-45 Celsius |
| Regulation | CE, FCC, MIC |
| Mobile App [new] | Windows, Android |
| Feature | Air Unit (TX) | Ground Unit (RX) |
|---|---|---|
| Video Interface | Micro HDMI | HDMI (Type A) |
| Antenna Connectors | SMA (x2) R/P | SMA (x3) R/P |
| Power Connector | 4-pins | DC Jack |
| Power Input | 6-28V (2S-6S) | 6-28V (2S-6S) |
| Dimensions (mm) | 65.5 x 44.7 x 14.9 | 100.2 x 71.2 x 17.15 |
| Weight | 60 grams | 140 grams |
